Air & Cooled Condensing Unit (Medium and High Temperature Air-Cooled Condensing Unit Scroll Series
Models				GXW3CQFZG	GXW4CQFZG		ZB38KQE		GXW6CQFZG	GXW8CQFZG	GXW10CQFZG	GXW13CQFZG	GXW15CQFZG
Power			2HP	3HP	4HP		5HP		6HP	8HP	10HP	13HP	15HP
Applicable Temperature (°C)			+10°C to -15°C
Refrigerant			R404A
Power Supply			220V/380V 50HZ					380V 50HZ
Condenser	Quantity of Fan		1	2	2	2		2		1	2	2	2
	Air Volume (m³/hr.)		1 x 3200	1 x 3200	2 x 3200	2 x 3200		2 x 3200		1 x 8720	2 x 6570	2 x 6570	2 x 6570
	Power (W)		1 x 60	1 x 60	2 x 60	2 x 60		2 x 60		1 x 600	2 x 450	2 x 450	2 x 450
Refrigerating Capacity of Compressor Units	Evaporating Temperature +5°C	Cooling Capacity Power	5270	7910	10450	12600		13400		19950	28300	32500	32500
			1920	3020	4100	5440		6130		7670	9550	12850	12850
	Evaporating Temperature -5°C	Cooling Capacity Power	3750	5100	7000	8850		10100		14650	20700	24000	24000
			1990	3100	3900	4700		5820		7060	8840	11750	11750
	Evaporating Temperature -12°C	Cooling Capacity Power	2920	4100	5600	7200		8060		11400	16150	18800	18800
			1910	2980	3700	4480		5370		6690	8410	11100	11100
Coupling	Tube Coupling		3/8”	3/8”	½”	¼”		½”		½”	5/8”	5/8”	5/8”
	Suction Coupling		5/8”	5/8”	¾”	¾”		¾”		1-1/8”	1-1/8”	1-3/8”	1-3/8”
Overall Dimension	(L) mm Length		970	970	970	970		970		770	1330	1480	1480
	(B) mm width		410	410	41	410		410		920	950	950	950
	(H) mm Height		835	835	133	1330		1330		900	890	990	990
Mounting Dimension	(D) mm Length		635	635	625	625		625		610	900	1050	1050
	(E) mm Width		380	380	380	380		380		890	920	920	920
Standard Configuration of Units: Compressor, Condenser, Liquid receiver, Pressure Controller, Pressure gauge, Filter, Solenoid Valve and Wiring Box etc.

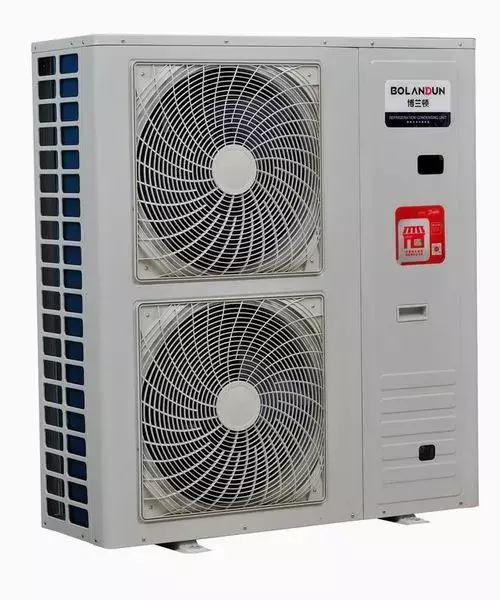

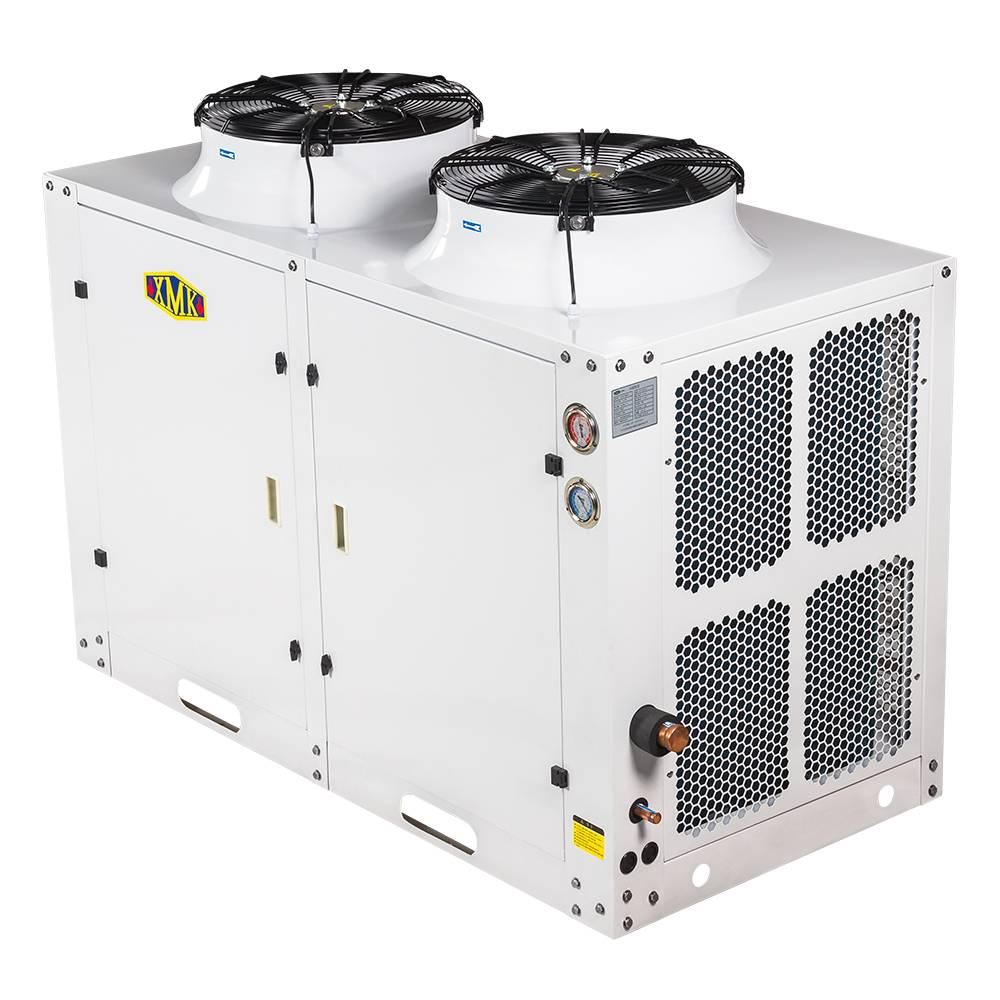

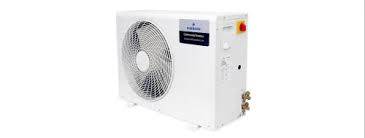

Condensing Unit
